SMART PLUG

Product introduction

1. Introduction

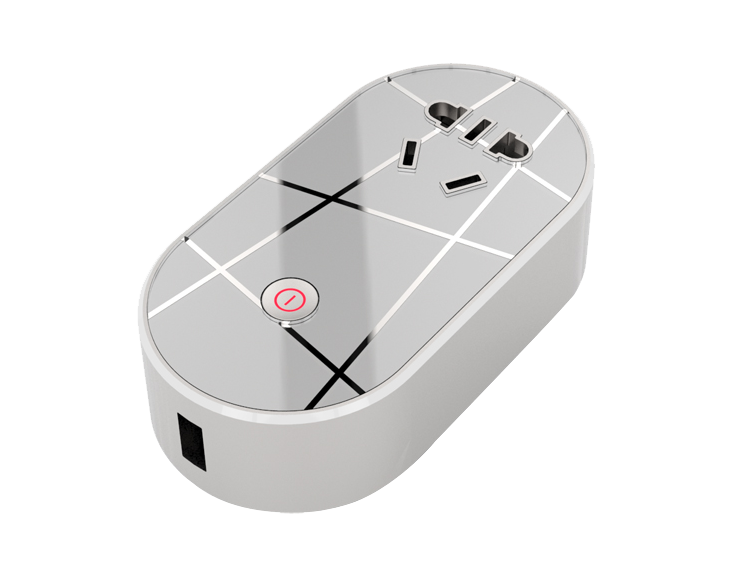

   The smart plug is a smart device with a built-in ZigBee module. Users can install a SparxSmart APP on their iOS or Andriod platforms and set scenes to turn on/off home appliances via 2G/3G/4G/Wi-Fi. Besides, it measures power consumption and there is a USB port on it for power charging.
2. Features
   Support standard protocol IEEE802.15.4;
   Turn on/off devices manually;
   Turn on/off device on APP.
3. Application
   The smart plug can be used to turn on/off devices and detect electricity consumption
   It can only be applied for low-voltage devices ( < 220V )
   USB charging is applied for mobile phone only
4. Product Standard
   Comply with the standard system of smart home.
5. Product Parameters
   • Appearance specification


     Appearance	Parameters
     Size	110 x 59x 34.5mm
     Outer shell	Fireproof ABS

   • Hardware specification


     Item	Hardware Specifications
     Chipset	CC2530F256
     Power detection	Degree of precision: 5%
     Rated power/current	AC110~220V 10A
     USB output	5V/1A
     Wireless standard	IEEE802.15.4
     Wireless output power	20dBm(max)
     Wireless receiving sensitivity	-97dBm(min)
     Wireless coverage area	100m
     Button	On/off button

   • Software specification


     Item	Software Specifications
     Turn on/off	-When the button is pressed for 6s, the blue light flashes twice indicating it is connecting to server. -It flashes three times indicating the device is ready for working
     Firmware upgrade	Upgrade firmware via the serial port
